| اسم العلامة التجارية: | Womeng |
| رقم الطراز: | وم-DVS01 |
| الـ MOQ: | 1 قطعة |
| السعر: | $300,000-$400,000/piece |
| تفاصيل التعبئة: | صندوق خشبي صالح للإبحار |
| شروط الدفع: | خطاب الاعتماد، د/أ، د/ف، تي/تي |
| Attribute | Value |
|---|---|
| Production Speed | 800-1200 pieces per minute |
| Product Size | 240mm,290mm,320mm,420mm(Customized according to customer requirement) |
| Production Yield Rate | ≥98% |
| Weight | About 50 tons |
| Machine Size | 25x4x3m |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Raw Material | Fluff pulp, SAP, non-woven fabric, PE film |
| Control System | PLC control system(Mitsubishi),HMI Operating on the LED touch |
| Drive system | Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings. |
| Power | 240V,50Hz,3 Phase Five Wire |
Technical features:
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

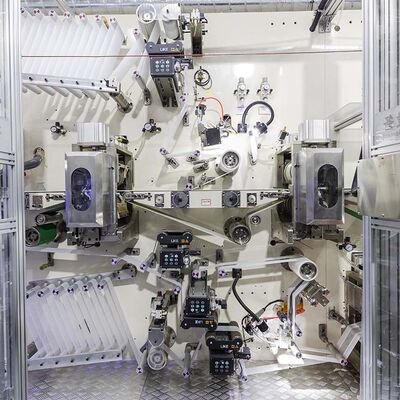

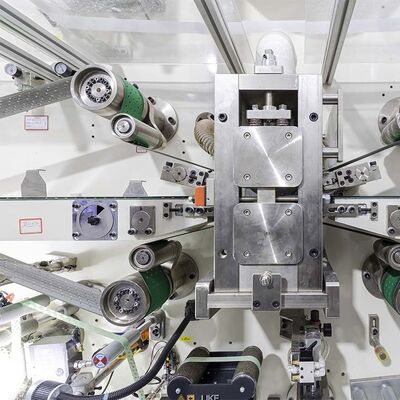

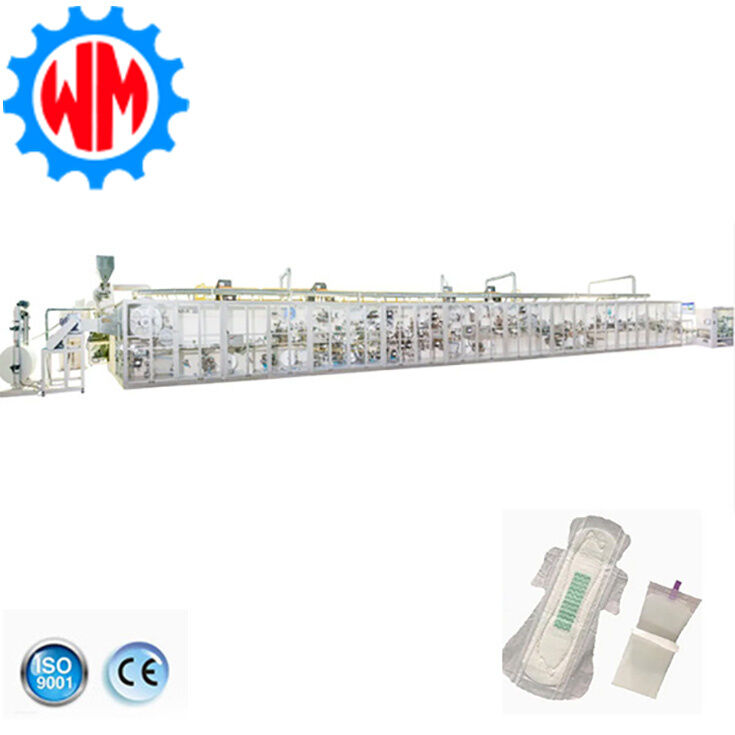

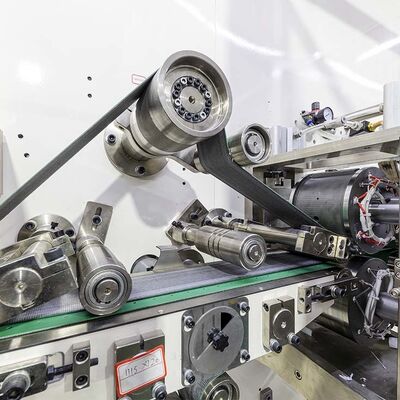

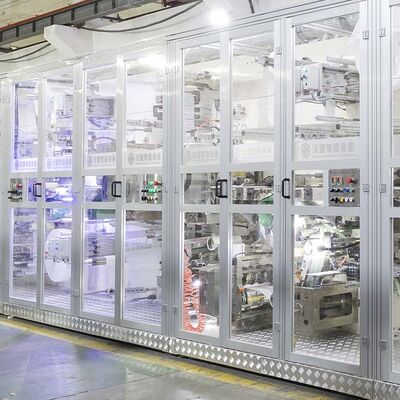

Machine Panoramic Image
Whatsapp: +008615805080212
https://www.diapersmachines.com
Long-term operation support is in place to ensure continuous profitability
Free technical upgrade guidance:
Free remote technical upgrade services are still provided after the warranty period, such as parameter optimization and process improvement plans, to help buyers enhance production efficiency and reduce losses. For instance, in response to changes in market raw materials, the adaptation parameters are updated in real time to ensure the stability of product quality.
Regionalized experience sharing:
Regularly share successful cases of customers in the same region, such as "A certain African customer reduced procurement costs by 20% through raw material substitution" and "A certain Southeast Asian customer increased repurchase rate by 30% after optimizing ventilation parameters", to help buyers quickly draw on mature models. At the same time, build a buyer communication platform to promote resource sharing and cooperation.
Strong adaptability to raw materials and ability to cope with fluctuations in the supply chain
Compatible with multiple quality raw materials:
By fine-tuning the servo parameters (conveying speed, pressing pressure), it can be compatible with non-woven fabrics of different grammages (deviation ±5g/㎡) and water-absorbing resins of different water absorption ratios (deviation ±10%), and can cope with fluctuations in raw material quality without equipment modification. Even in areas with tight raw material supply, alternative raw materials can be flexibly selected to avoid production disruptions.
Support low-cost raw material solutions:
Provide targeted raw material substitution guidance. For instance, in the economy market, it is recommended to use high cost-performance chemical fiber non-woven fabric to replace pure cotton surface layer, or to use mixed water-absorbing resin to replace pure polymer resin. The production line can be seamlessly adapted to help buyers reduce procurement costs and enhance the price competitiveness of their products.
فيديو
فيديو
فيديو
فيديو
|
